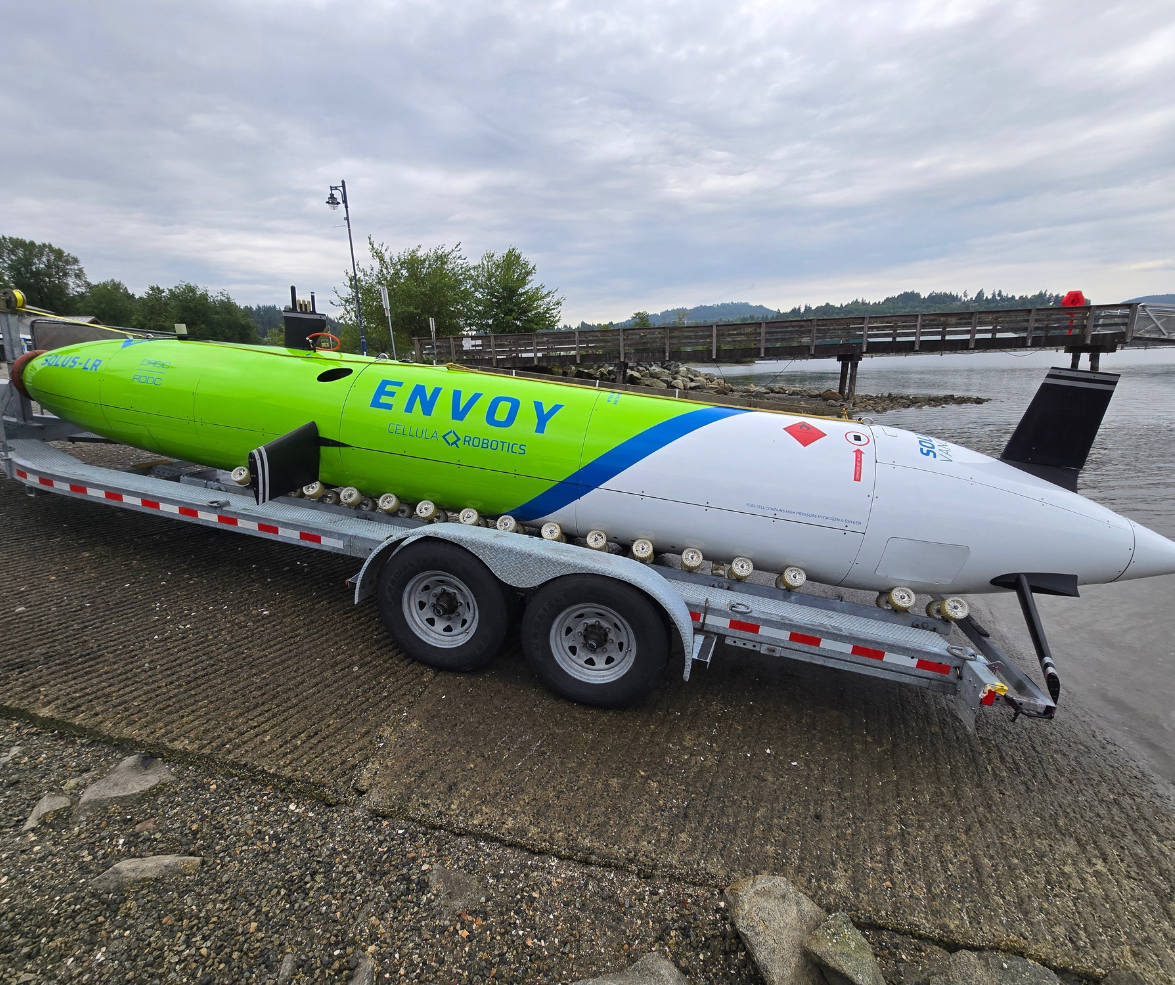

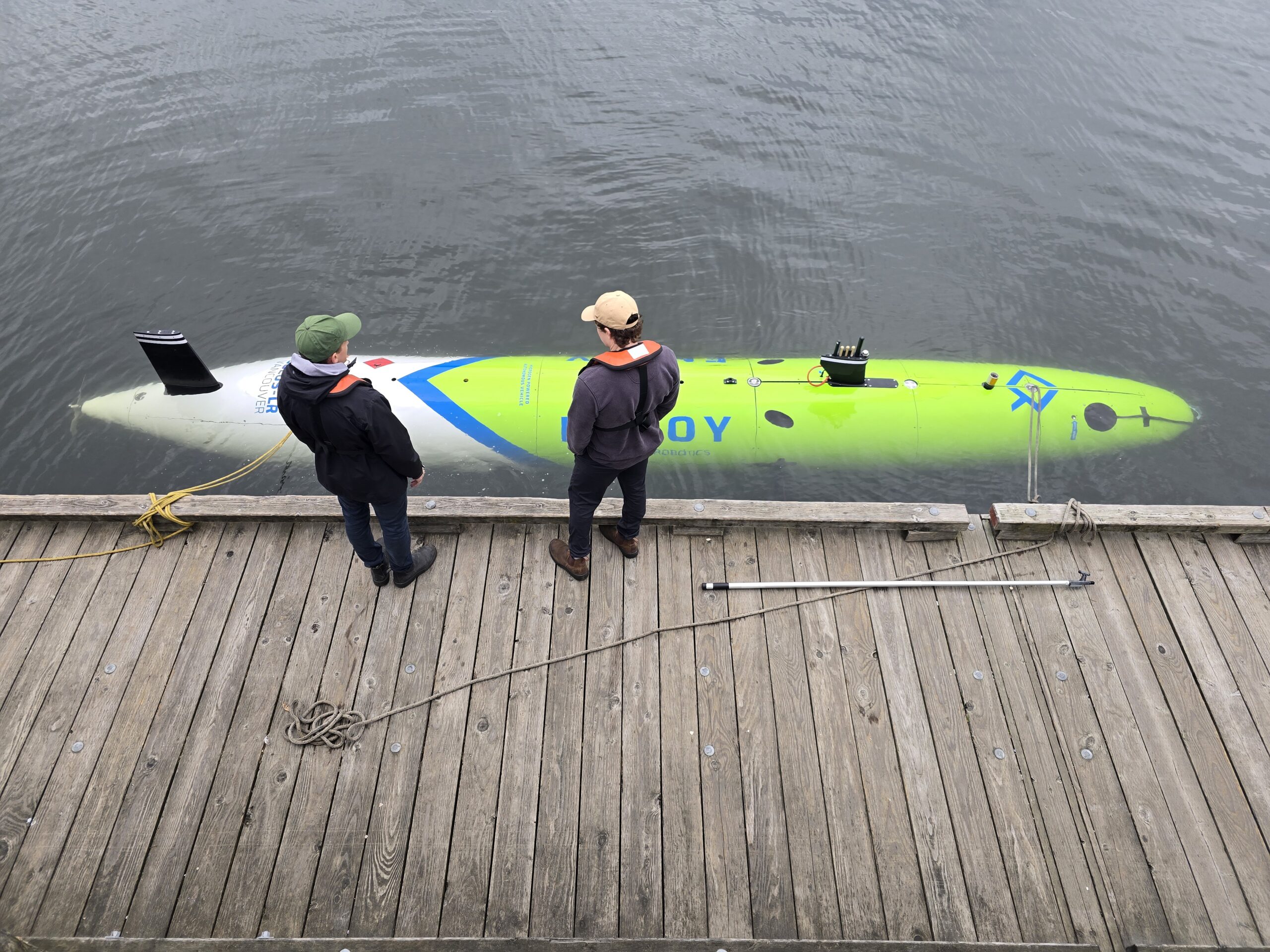

Envoy AUV

Size & Weight

Envoy is a compact and lightweight vehicle, measuring 8.5 meters in length and 1 meter in diameter, with a displacement of 3,700 kg. Smaller configurations are available to suit specific mission requirements, making it adaptable to various operational scenarios.

Power & Endurance

Envoy offers endurance and range, powered by a 1200 W hydrogen fuel cell. This configuration enables a 2,000 km submerged range and a 15-day endurance. Battery-powered configurations are also available. Additionally, the endurance can be extended through the use of a suction anchor.

Payload & Depth

Envoy’s 500-liter flooded payload bay provides ample space for various sensors and instruments. With a 2,000-meter operating depth, Envoy can explore and survey a wide range of underwater environments, including deep-sea trenches and hydrothermal vents.

Envoy AUV Surveillance

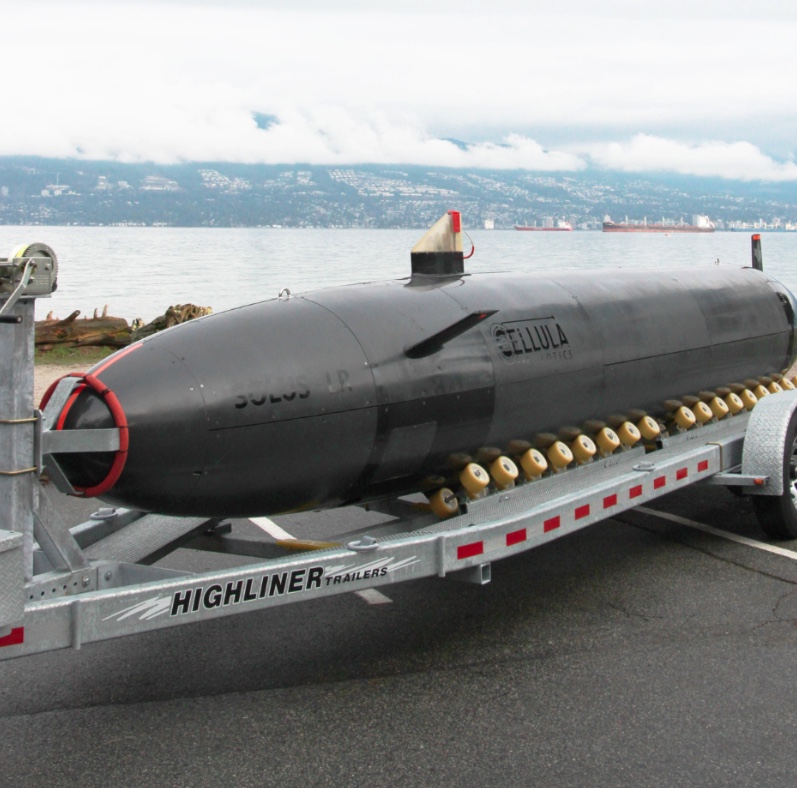

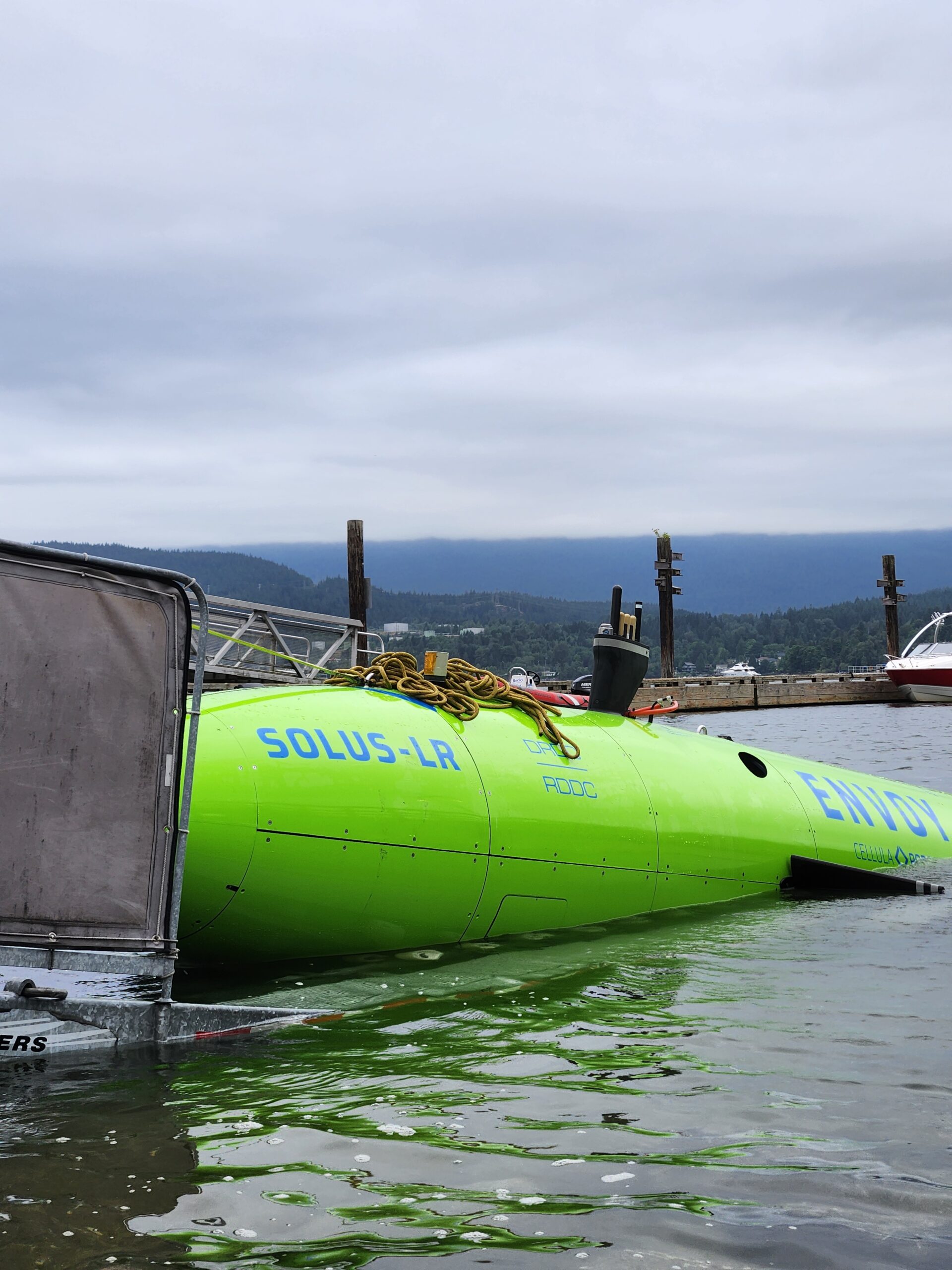

The Envoy AUV, previously known as the Solus-LR is a long-endurance underwater vehicle powered by a fuel cell. It can remain submerged for months, traveling thousands of kilometers. Using a suction anchor, it secures itself to the seabed for covert, long-duration missions in challenging underwater environments. This enables persistent surveillance and data collection, making the Envoy AUV valuable for a wide range of underwater applications, from scientific research to national security.

About Envoy AUV

Performance Highlights

Powered by either rechargeable batteries or a hydrogen fuel cell, Envoy can cover up to 2,000 line kilometers of survey, extending its operational range and endurance for various missions.

Payload Options

Envoy includes geophysical sensors such as synthetic aperture sonar, multi-beam echosounder, sub-bottom profiler, camera, laser, magnetometer, and environmental sensors.

Easy to Mobilize

The topside support equipment, including containers, LARS, and communications systems, uses industry-standard interfaces for easy mobilization and deployment.

Applications

Commercial Survey

The system is capable of geophysical and hydrographic commercial surveys, magnetometry, site and hazard characterization, and marine archaeological investigations.

Integrity Management

The system is capable of comprehensive pipeline and cable survey and inspection, including route surveys, integrity assessments, and anomaly detection.

Payload Deployment

The payload system can deploy drop nodes, LBL beacons, smaller AUVs, and other specialized equipment to enhance data collection and mission capabilities.

Defence Applications

The system supports various applications, including seabed warfare, MCM, REA, IPoE, persistent surveillance/ISR, and CUI inspection, enhancing maritime security.

(Optional: Available to naval customer only, subject to export restriction)

Delivery of products may be subject to obtaining an appropriate export license. Certain products or capabilities may be limited to specific market segments, geographic regions and/or customer types. i.e. naval operators.

Envoy AUV Specifications

Envoy AUV – Battery

Dimensions: Length: 5.6 to 10 m, Diameter: 1 m
Weight: 1400 to 5500 kgs
Depth Rating: 1000, 3000 or 6000 m
Energy Source: Lithium Ion (Kraken)
Endurance (hrs): 24-96 hours
Max Range (km): 130-500 km
Topside Equipment: LARS & containers with standard interfaces
Autonomy Options: Pipe/cable tracking, terrain/feature based navigation, performance based management

Envoy AUV – Fuel Cell

Dimensions: Length: 8.5 m, Diameter: 1 m
Weight: 2700 kgs
Depth Rating: 1000, 3000 or 6000 m
Energy Source: Hydrogen Fuel Cell
Endurance (hrs): 370 hours (15.4 days)
Max Range (km): 2000 km
Topside Equipment: LARS & containers with standard interfaces
Autonomy Options: Pipe/cable tracking, terrain/feature based navigation, performance based management
