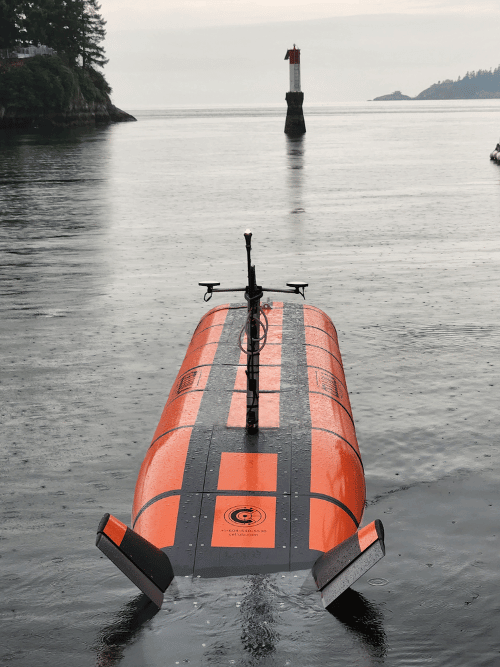

Porter AUV

Endurance & Range

With over 45 days of submerged endurance and a 5,000 km range, powered by a hydrogen fuel cell air-independent propulsion system, the Porter offers unparalleled mission duration and operational flexibility, enabling extended deployments and exploration of vast underwater areas.

Payload & Configuration

Porter’s modular payload bays, each with a 2,500-liter capacity, offer flexible configuration options for various missions. The adaptive mission planning interface enables real-time adjustments, while the retractable communications mast facilitates data transmission and control.

Logistics & Maneuverability

Porter’s design fits in a 40m ISO container for easy deployment. Covert launch capabilities from shore or ship enhance operational flexibility. Its 8-knot speed, redundant propellers, and hovering capabilities provide exceptional maneuverability and precise station-keeping.

Porter AUV Payload Delivery

The Porter AUV is equipped with a spacious payload bay, designed to carry various cargo, including equipment for the installation and replenishment of remote subsea power stations. These subsea power stations allow in-field assets and resident vehicles to operate continuously without the need for refueling onshore or resurfacing, thereby enhancing operational uptime and reducing costs by minimizing dependence on resupply vessels.

About Porter AUV

Performance Highlights

Capable of swimming from shore, Porter can conduct up to 45 days of operations, covering 5,000 line kilometers of survey in a single dive, increasing operational efficiency and reducing costs.

Payload Options

Porter has typical geophysical sensors and offers 5,000 liters of payload space. It also accommodates custom skids and deploys off-platform payloads, such as small AUVs, nodes, and an ROV.

Adaptive Autonomy

Porter operates autonomously for 45 days, reducing routine supervision. Using standard interfaces, Porter can be integrated with third-party autonomy packages for mission-specific tasks.

Applications

Long-Range Survey

A configurable survey suite, including SAS/SSS, SBP, magnetometer, and cameras, combined with a mission interface enables autonomous adaptations based on sensor edge processing.

Delivery & Recovery

With 5 cubic meters of dedicated payload space, seafloor surveys for deployment location validation, and hovering capabilities, the system offers flexibility and accuracy in underwater operations.

Integrity Inspection

Autonomous tracking with optical and magnetic sensors safeguards subsea telecommunication and power cables, adapting to environmental changes through onboard processing.

Energy Delivery

The system incorporates a high-capacity hydrogen fuel cell, providing greater than 1 MWh of energy. It enables autonomous docking and wireless power transfer to support subsea assets.

Delivery of products may be subject to obtaining an appropriate export license. Certain products or capabilities may be limited to specific market segments, geographic regions and/or customer types. i.e. naval operators.

Porter AUV Specifications

Porter AUV – Battery

Dimensions: Length: 11.7 m, Width/Height: 1.66 m
Weight: 7500 to 9000 kgs
Depth Rating: 300, 1000, or 3000 m
Energy Source: Lithium Ion (Kraken)
Endurance (hrs): 18-48 hours
Max Range (km): 100 to 260 km
Payload Bays: 2 bays: 1.2 x 1.2 x 1.7 m each or 1 single bay
Persistence: Ability station keep or anchor to the seafloor for prolonged periods
Autonomy Options: Pipe/cable tracking, terrain/feature based navigation, performance based management

Porter AUV – Fuel Cell

Dimensions: Length: 11.7 m, Width/Height: 1.66 m
Weight: 8000 kg
Depth Rating: 300, 1000, or 3000 m
Energy Source: Hydrogen Fuel Cell
Endurance (hrs): 925 hours (38.5 days)
Max Range (km): 5000 km
Payload Bays: 2 bays: 1.2 x 1.2 x 1.7 m each or 1 single bay
Persistence: Ability station keep or anchor to the seafloor for prolonged periods
Autonomy Options: Pipe/cable tracking, terrain/feature based navigation, performance based management
