Subsea Sentinel

Subsea Sentinel Overview

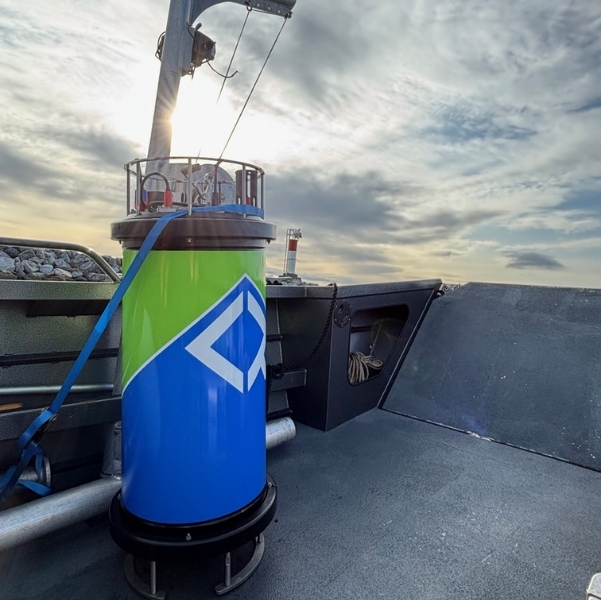

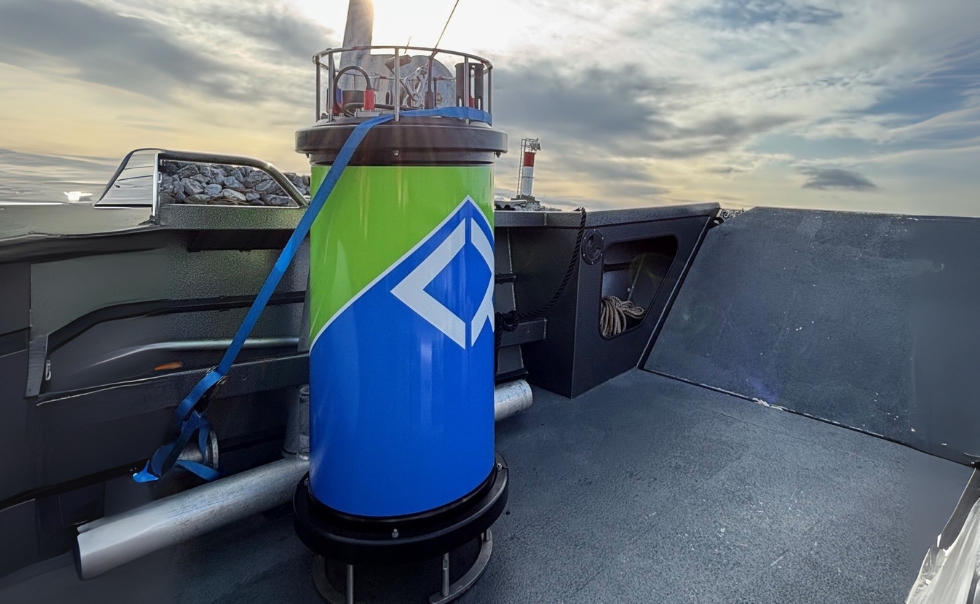

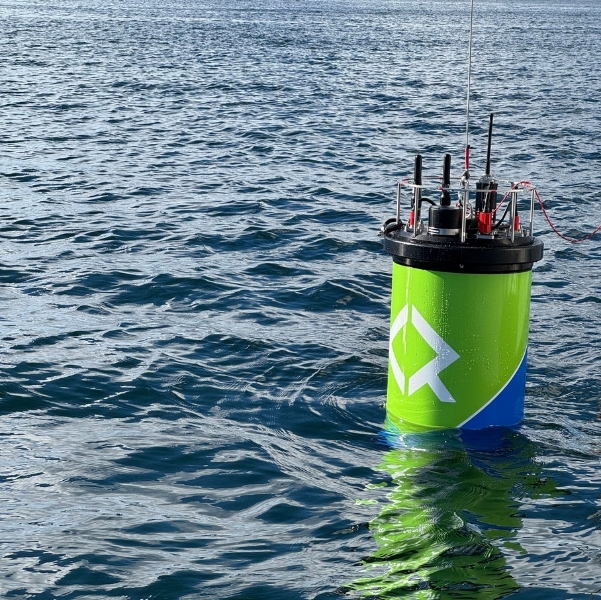

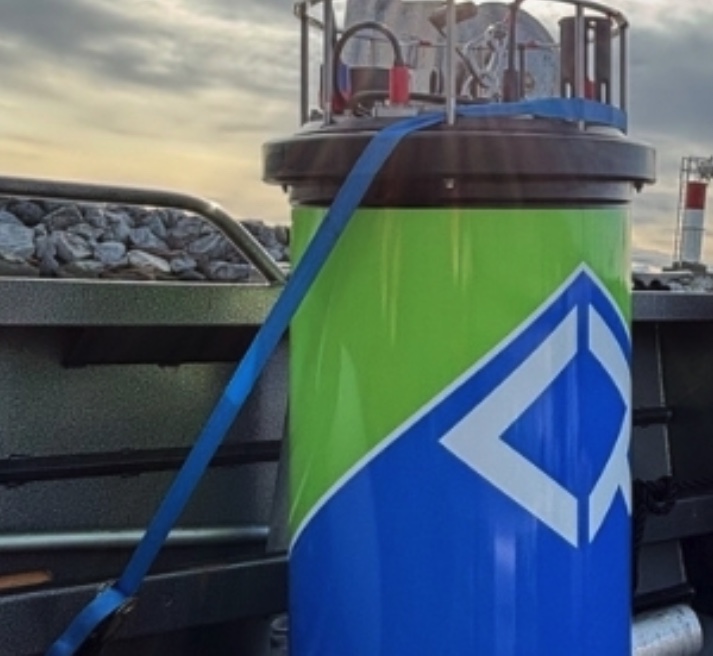

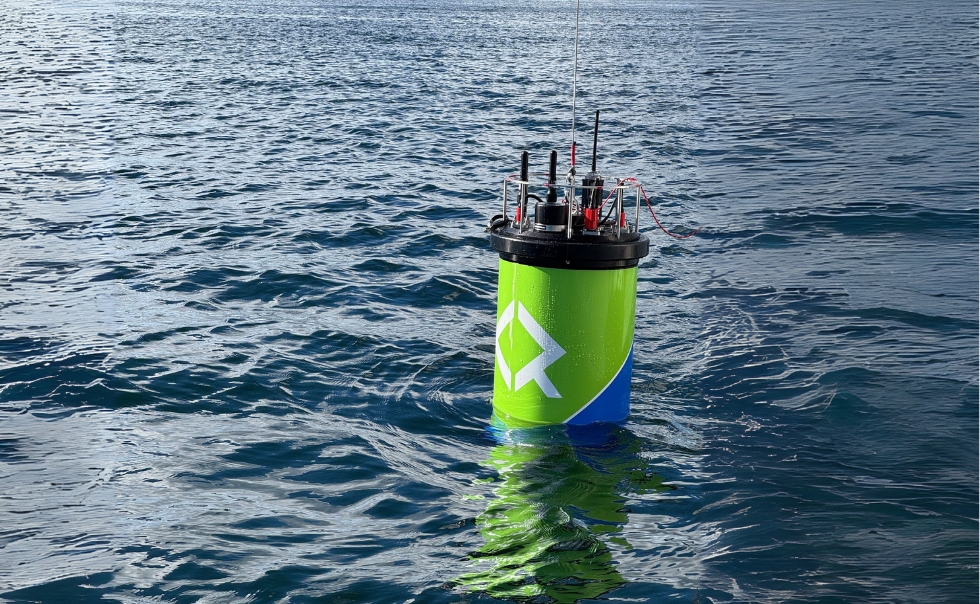

A cableless array of long-endurance, autonomous seabed sensors collects and communicates critical real-time ocean information. The node is configurable with custom sensor packages, ranging from acoustics for military detection to marine mammal detection and environmental sensing.

Advanced Detection and Analysis

The system monitors, detects, and characterizes mobile objects, both anthropogenic and natural, using advanced in-situ processing built on proven technology. This enables real-time analysis, classification, and response to detected objects, enhancing situational awareness and security.

Versatile Deployment and Communication

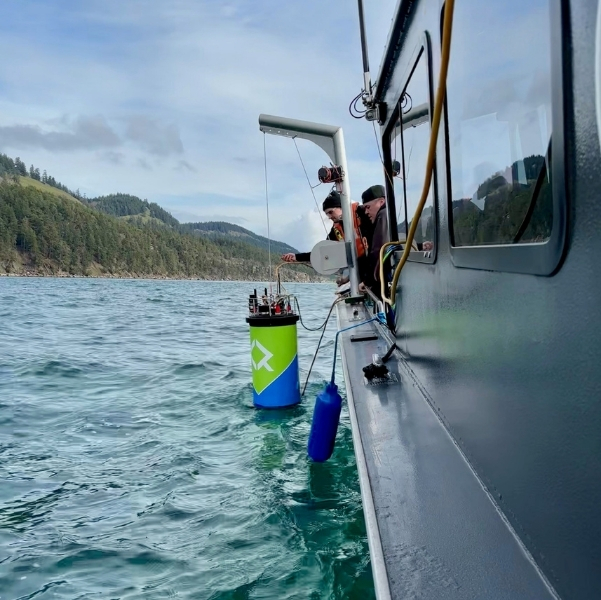

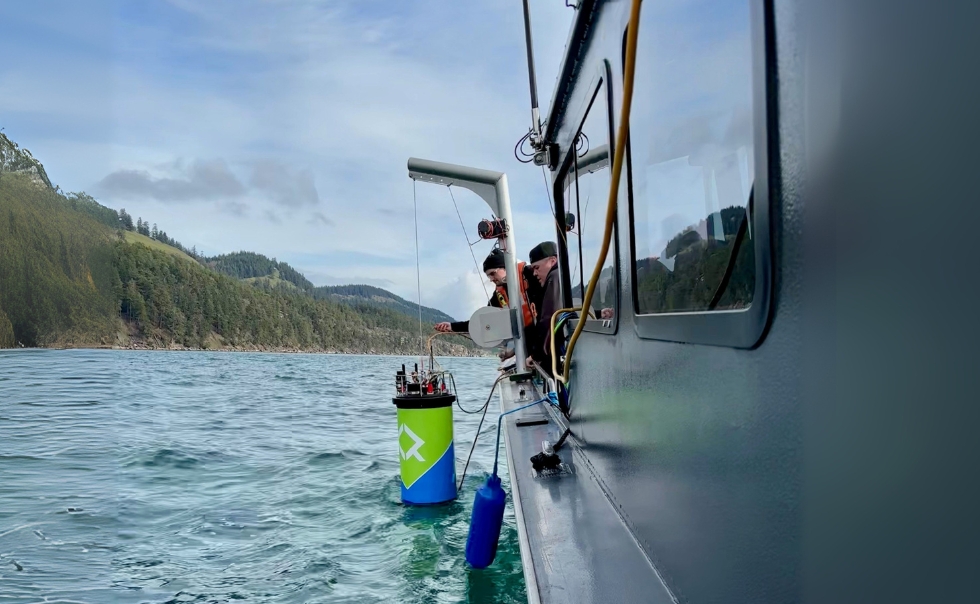

The system offers a 10-kilometer range between nodes for sensing and inter-node communication. It can be deployed by vessel or large AUV and boasts a one-year operating life. Sensor expansion options, including LBL, and a CTD sensor are available, offering versatility and adaptability.

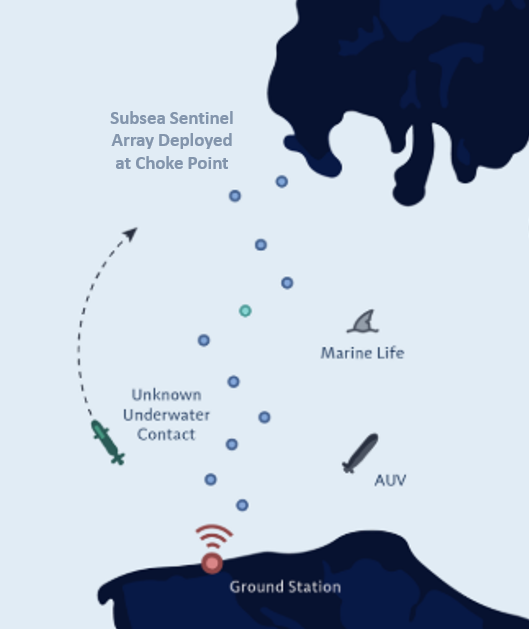

Advanced Underwater Surveillance with Subsea Sentinel

These nodes offer a cutting-edge solution for underwater surveillance and security. Deployed across large areas, these autonomous nodes form intelligent networks that detect, classify, and track underwater sound sources. With their long endurance and low-power operation, They provide persistent monitoring in remote and challenging environments. By integrating seamlessly with underwater systems, such as AUVs, our Subsea Sentinel enables comprehensive situational awareness and timely response to emerging threats.

About Subsea Sentinel

Performance Highlights

A cableless array of long-endurance, autonomous seabed sensors collects, processes, and communicates real-time ocean information, providing valuable insights for various marine applications.

Configurable Options

The system incorporates passive and active acoustic sensors, long-range acoustic communications, and short-range high-bandwidth optical communications for data collection.

Detection & Tracking

The system can detect and classify objects in the water column, track them through the network, and provide real-time alerts using advanced onboard processing tools.

Applications

Maritime Pattern-of-Life Building

Allows Subsea Sentinel to establish baseline behaviors of vessels, enabling early detection of anomalies and potential threats.

Discreet Underwater Navigation

Enables Subsea Sentinel to operate covertly, avoiding detection and ensuring mission success by blending into the marine environment.

Acoustic Noise Management

Allows Subsea Sentinel to minimize its acoustic signature, reducing the risk of detection and improving effectiveness by optimizing system operations.

Marine Life Observation

Enables Subsea Sentinel to collect valuable data on marine ecosystems, contributing to scientific research and conservation efforts.

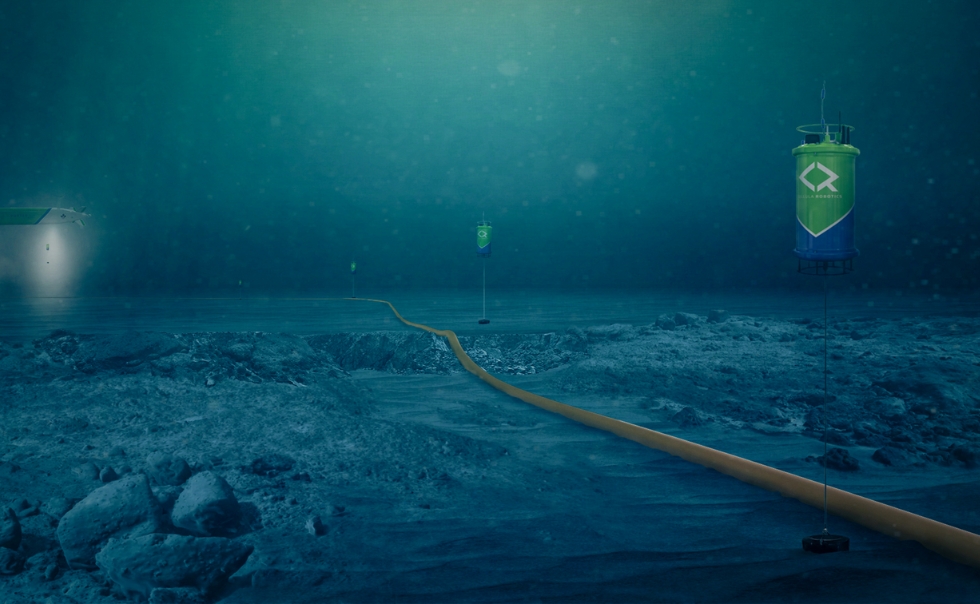

Cabled Observatory Extension

Allows Subsea Sentinel to leverage existing underwater infrastructure, expanding its operational capabilities and data collection potential.

Delivery of products may be subject to obtaining an appropriate export license. Certain products or capabilities may be limited to specific market segments, geographic regions and/or customer types. i.e. naval operators.

Subsea Sentinel Specifications

Dimensions: Length: 140 cm, Diameter: 49 cm
Weight: 140 kg
Depth Rating: 500 m
Energy Source: Lithium
Endurance (days): 12 days (active). 365 days (passive)
Communications: Long range acoustic modem, optical modem
Network Mode: Option to be deployed as a network with each node in acoustic range of two others for full coverage
Standard Payload Sensors: Passive acoustics, CTD
Optional Payload Sensors: Echosounders, turbulence and environmental
Autonomy Options: Wake on trigger, event detect and transmit
